You may have read some blog posts or heard conference talks on this topic and think you know the answers. You’ve probably heard things like: “HTTP/3 is much faster than HTTP/2 when there is packet loss”, or “HTTP/3 connections have less latency and take less time to set up”, and probably “HTTP/3 can send data more quickly and can send more resources in parallel”.
These statements and articles typically skip over some crucial technical details, are lacking in nuance, and usually are only partially correct. Often they make it seem as if HTTP/3 is a revolution in performance, while it is really a more modest (yet still useful!) evolution. This is dangerous, because the new protocol will probably not be able to live up to these high expectations in practice. I fear this will lead to many people ending up disappointed and to newcomers being confused by heaps of blindly perpetuated misinformation.
I’m afraid of this because we’ve seen exactly the same happen with HTTP/2. It was heralded as an amazing performance revolution, with exciting new features such as server push, parallel streams, and prioritization. We would have been able to stop bundling resources, stop sharding our resources across multiple servers, and heavily streamline the page-loading process. Websites would magically become 50% faster with the flip of a switch!
Five years later, we know that server push doesn’t really work in practice, streams and prioritization are often badly implemented, and, consequently, (reduced) resource bundling and even sharding are still good practices in some situations.
As such, I feel it is important to prevent this type of misinformation and these unrealistic expectations from spreading for HTTP/3 as well.
In this article series, I will discuss the new protocol, especially its performance features, with more nuance. I will show that, while HTTP/3 indeed has some promising new concepts, sadly, their impact will likely be relatively limited for most web pages and users (yet potentially crucial for a small subset). HTTP/3 is also quite challenging to set up and use (correctly), so take care when configuring the new protocol.
- Part 1: HTTP/3 History And Core Concepts
This article is targeted at people new to HTTP/3 and protocols in general, and it mainly discusses the basics.
- Part 2: HTTP/3 Performance Features
This one is more in depth and technical. People who already know the basics can start here.
- Part 3: Practical HTTP/3 Deployment Options
This third article in the series explains the challenges involved in deploying and testing HTTP/3 yourself. It details how and if you should change your web pages and resources as well.
Note: This series is aimed mainly at web developers who do not necessarily have a deep knowledge of protocols and would like to learn more. However, it does contain enough technical details and many links to external sources to be of interest to more advanced readers as well.
Why Do We Need HTTP/3?
One question I’ve often encountered is, “Why do we need HTTP/3 so soon after HTTP/2, which was only standardized in 2015?” This is indeed strange, until you realize that we didn’t really need a new HTTP version in the first place, but rather an upgrade of the underlying Transmission Control Protocol (TCP).
TCP is the main protocol that provides crucial services such as reliability and in-order delivery to other protocols such as HTTP. It’s also one of the reasons we can keep using the Internet with many concurrent users, because it smartly limits each user’s bandwidth usage to their fair share.
Did You Know?
When using HTTP(S), you’re really using several protocols besides HTTP at the same time. Each of the protocols in this “stack” has its own features and responsibilities (see image below). For example, while HTTP deals with URLs and data interpretation, Transport Layer Security (TLS) ensures security by encryption, TCP enables reliable data transport by retransmitting lost packets, and Internet Protocol (IP) routes packets from one endpoint to another across different devices in between (middleboxes).
This “layering” of protocols on top of one another is done to allow easy reuse of their features. Higher-layer protocols (such as HTTP) don’t have to reimplement complex features (such as encryption) because lower-layer protocols (such as TLS) already do that for them. As another example, most applications on the Internet use TCP internally to ensure that all of their data are transmitted in full. For this reason, TCP is one of the most widely used and deployed protocols on the Internet.
TCP has been a cornerstone of the web for decades, but it started to show its age in the late 2000s. Its intended replacement, a new transport protocol named QUIC, differs enough from TCP in a few key ways that running HTTP/2 directly on top of it would be very difficult. As such, HTTP/3 itself is a relatively small adaptation of HTTP/2 to make it compatible with the new QUIC protocol, which includes most of the new features people are excited about.

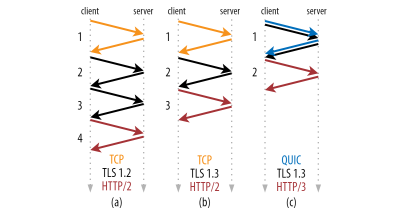

QUIC is needed because TCP, which has been around since the early days of the Internet, was not really built with maximum efficiency in mind. For example, TCP requires a “handshake” to set up a new connection. This is done to ensure that both client and server exist and that they’re willing and able to exchange data. It also, however, takes a full network round trip to complete before anything else can be done on a connection. If the client and server are geographically distant, each round-trip time (RTT) can take over 100 milliseconds, incurring noticeable delays.
As a second example, TCP sees all of the data it transports as a single “file” or byte stream, even if we’re actually using it to transfer several files at the same time (for example, when downloading a web page consisting of many resources). In practice, this means that if TCP packets containing data of a single file are lost, then all other files will also get delayed until those packets are recovered.
This is called head-of-line (HoL) blocking. While these inefficiencies are quite manageable in practice (otherwise, we wouldn’t have been using TCP for over 30 years), they do affect higher-level protocols such as HTTP in a noticeable way.
Over time, we’ve tried to evolve and upgrade TCP to improve some of these issues and even introduce new performance features. For example, TCP Fast Open gets rid of the handshake overhead by allowing higher-layer protocols to send data along from the start. Another effort is called MultiPath TCP. Here, the idea is that your mobile phone typically has both Wi-Fi and a (4G) cellular connection, so why not use them both at the same time for extra throughput and robustness?
It’s not terribly difficult to implement these TCP extensions. However, it is extremely challenging to actually deploy them at Internet scale. Because TCP is so popular, almost every connected device has its own implementation of the protocol on board. If these implementations are too old, lack updates, or are buggy, then the extensions won’t be practically usable. Put differently, all implementations need to know about the extension in order for it to be useful.
This wouldn’t be much of a problem if we were only talking about end-user devices (such as your computer or web server), because those can relatively easily be updated manually. However, many other devices are sitting between the client and the server that also have their own TCP code on board (examples include firewalls, load balancers, routers, caching servers, proxies, etc.).
These middleboxes are often more difficult to update and sometimes more strict in what they accept. For example, if the device is a firewall, it might be configured to block all traffic containing (unknown) extensions. In practice, it turns out that an enormous number of active middleboxes make certain assumptions about TCP that no longer hold for the new extensions.
Consequently, it can take years to even over a decade before enough (middlebox) TCP implementations become updated to actually use the extensions on a large scale. You could say that it has become practically impossible to evolve TCP.
As a result, it was clear that we would need a replacement protocol for TCP, rather than a direct upgrade, to resolve these issues. However, due to the sheer complexity of TCP’s features and their various implementations, creating something new but better from scratch would be a monumental undertaking. As such, in the early 2010s it was decided to postpone this work.
After all, there were issues not only with TCP, but also with HTTP/1.1. We chose to split up the work and first “fix” HTTP/1.1, leading to what is now HTTP/2. When that was done, the work could start on the replacement for TCP, which is now QUIC. Originally, we had hoped to be able to run HTTP/2 on top of QUIC directly, but in practice this would make implementations too inefficient (mainly due to feature duplication).
Instead, HTTP/2 was adjusted in a few key areas to make it compatible with QUIC. This tweaked version was eventually named HTTP/3 (instead of HTTP/2-over-QUIC), mainly for marketing reasons and clarity. As such, the differences between HTTP/1.1 and HTTP/2 are much more substantial than those between HTTP/2 and HTTP/3.
The key takeaway here is that what we needed was not really HTTP/3, but rather “TCP/2”, and we got HTTP/3 “for free” in the process. The main features we’re excited about for HTTP/3 (faster connection set-up, less HoL blocking, connection migration, and so on) are really all coming from QUIC.
What Is QUIC?
You might be wondering why this matters? Who cares if these features are in HTTP/3 or QUIC? I feel this is important, because QUIC is a generic transport protocol which, much like TCP, can and will be used for many use cases in addition to HTTP and web page loading. For example, DNS, SSH, SMB, RTP, and so on can all run over QUIC. As such, let’s look at QUIC a bit more in depth, because it’s here where most of the misconceptions about HTTP/3 that I’ve read come from.
One thing you might have heard is that QUIC runs on top of yet another protocol, called the User Datagram Protocol (UDP). This is true, but not for the (performance) reasons many people claim. Ideally, QUIC would have been a fully independent new transport protocol, running directly on top of IP in the protocol stack shown in the image I shared above.
However, doing that would have led to the same issue we encountered when trying to evolve TCP: All devices on the Internet would first have to be updated in order to recognize and allow QUIC. Luckily, we can build QUIC on top of the one other broadly supported transport-layer protocol on the Internet: UDP.
Did You Know?
UDP is the most bare-bones transport protocol possible. It really doesn’t provide any features, besides so-called port numbers (for example, HTTP uses port 80, HTTPS is on 443, and DNS employs port 53). It does not set up a connection with a handshake, nor is it reliable: If a UDP packet is lost, it is not automatically retransmitted. UDP’s “best effort” approach thus means that it’s about as performant as you can get: There’s no need to wait for the handshake and there’s no HoL blocking. In practice, UDP is mostly used for live traffic that updates at a high rate and thus suffers little from packet loss because missing data is quickly outdated anyway (examples include live video conferencing and gaming). It’s also useful for cases that need low up-front delay; for example, DNS domain name lookups really should only take a single round trip to complete.
Many sources claim that HTTP/3 is built on top of UDP because of performance. They say that HTTP/3 is faster because, just like UDP, it doesn’t set up a connection and doesn’t wait for packet retransmissions. These claims are wrong. As we’ve said above, UDP is used by QUIC and, thus, HTTP/3 mainly because the hope is that it will make them easier to deploy, because it is already known to and implemented by (almost) all devices on the Internet.
On top of UDP, then, QUIC essentially reimplements almost all features that make TCP such a powerful and popular (yet somewhat slower) protocol. QUIC is absolutely reliable, using acknowledgements for received packets and retransmissions to make sure lost ones still arrive. QUIC also still sets up a connection and has a highly complex handshake.
Finally, QUIC also uses so-called flow-control and congestion-control mechanisms that prevent a sender from overloading the network or the receiver, but that also make TCP slower than what you could do with raw UDP. The key thing is that QUIC implements these features in a smarter, more performant way than TCP. It combines decades of deployment experience and best practices of TCP with some core new features. We will discuss these features in more depth later in this article.
The key takeaway here is that there is no such thing as a free lunch. HTTP/3 isn’t magically faster than HTTP/2 just because we swapped TCP for UDP. Instead, we’ve reimagined and implemented a much more advanced version of TCP and called it QUIC. And because we want to make QUIC easier to deploy, we run it over UDP.
The Big Changes
So, how exactly does QUIC improve upon TCP, then? What is so different? There are several new concrete features and opportunities in QUIC (0-RTT data, connection migration, more resilience to packet loss and slow networks) that we will discuss in detail in the next part of the series. However, all of these new things basically boil down to four main changes:
- QUIC deeply integrates with TLS.
- QUIC supports multiple independent byte streams.

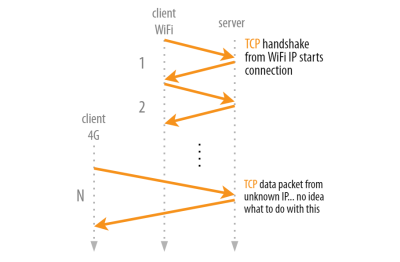

- QUIC uses connection IDs.

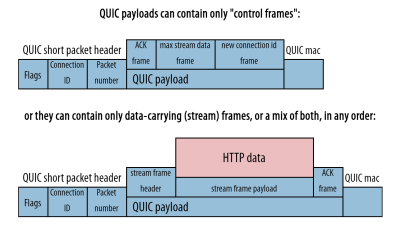

- QUIC uses frames.
Let’s take a closer look at each of these points.
There Is No QUIC Without TLS
As mentioned, TLS (the Transport Layer Security protocol) is in charge of securing and encrypting data sent over the Internet. When you use HTTPS, your plaintext HTTP data is first encrypted by TLS, before being transported by TCP.
Did You Know?
TLS’s technical details, luckily, aren’t really necessary here; you just need to know that encryption is done using some pretty advanced math and very large (prime) numbers. These mathematical parameters are negotiated between the client and the server during a separate TLS-specific cryptographic handshake. Just like the TCP handshake, this negotiation can take some time. In older versions of TLS (say, version 1.2 and lower), this typically takes two network round trips. Luckily, newer versions of TLS (1.3 is the latest) reduce this to just one round trip. This is mainly because TLS 1.3 severely limits the different mathematical algorithms that can be negotiated to just a handful (the most secure ones). This means that the client can just immediately guess which ones the server will support, instead of having to wait for an explicit list, saving a round trip.
In the early days of the Internet, encrypting traffic was quite costly in terms of processing. Additionally, it was also not deemed necessary for all use cases. Historically, TLS has thus been a fully separate protocol that can optionally be used on top of TCP. This is why we have a distinction between HTTP (without TLS) and HTTPS (with TLS).
Over time, our attitude towards security on the Internet has, of course, changed to “secure by default”. As such, while HTTP/2 can, in theory, run directly over TCP without TLS (and this is even defined in the RFC specification as cleartext HTTP/2), no (popular) web browser actually supports this mode. In a way, the browser vendors made a conscious trade-off for more security at the cost of performance.
Given this clear evolution towards always-on TLS (especially for web traffic), it is no surprise that the designers of QUIC decided to take this trend to the next level. Instead of simply not defining a cleartext mode for HTTP/3, they elected to ingrain encryption deeply into QUIC itself. While the first Google-specific versions of QUIC used a custom set-up for this, standardized QUIC uses the existing TLS 1.3 itself directly.

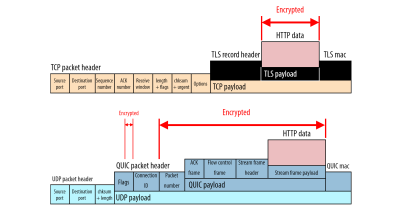

For this, it sort of breaks the typical clean separation between protocols in the protocol stack, as we can see in the previous image. While TLS 1.3 can still run independently on top of TCP, QUIC instead sort of encapsulates TLS 1.3. Put differently, there is no way to use QUIC without TLS; QUIC (and, by extension, HTTP/3) is always fully encrypted. Furthermore, QUIC encrypts almost all of its packet header fields as well; transport-layer information (such as packet numbers, which are never encrypted for TCP) is no longer readable by intermediaries in QUIC (even some of the packet header flags are encrypted).
