# Modern Fluid Typography Using CSS Clamp

#### About The Author

Adrian Bece is a full-stack web developer with extensive eCommerce experience. He enjoys writing and talking about the latest and greatest technologies in web … More about Adrian ↬

Weekly tips on front-end & UX.
Trusted by 176.000 folks.

Quick summary ↬ In this article, we’ll explore fluid typography principles, use-cases, best practices, implementation with CSS clamp function and how to calculate the right parameters. We’ll also learn how to address some accessibility concerns and watch out for one important issue that we cannot fix as of yet, but have to be aware of regardless.

The concept of fluid typography in web development has been present for years, and developers had to rely on various workarounds to make it work in the browser. With the new CSS clamp function, creating fluid typography has never been more straightforward.

Usually, when we implement responsive typography, values change on specific breakpoints. They are explicitly defined. So designers often provide typographic values (font sizes, line heights, letter spacings, etc.) for two, three, or even more screen sizes, and developers usually implement these requirements by adding media queries to target specific breakpoints.

Although typography elements might look as good as on the designs, that might not be the case for some elements on viewport widths close to the breakpoints. As we already know, there are lots of different devices and screen sizes available to users beyond the ones addressed in the design. Adding more breakpoints in-between and style overrides might fix the issue, but we risk increasing complexity in code, creating more edge cases, and making the code less clear and maintainable.

Fluid typography scales smoothly between the minimum and maximum value depending on the viewport width. It usually starts with a minimum value and it maintains the constant value until a specific screen width point at which it starts increasing. Once it reaches a maximum value at another screen width, it maintains that maximum value from there on. We’ll see in this article that fluid typography can also flow in the reverse order — start with a maximum value and end with a minimum value.

This approach reduces or eliminates the fine-tuning for specific breakpoints and other edge cases. Although it’s mostly used in typography, this fluid sizing approach also works for margin, padding, gap, etc.

Notice how in the following example, title text scales smoothly and how it looks good on any viewport width. Also, notice how the content still retains the responsive typography, and the value changes only on a breakpoint.

Although fluid typography addresses the aforementioned issues, it’s not ideal for all scenarios, and fluid typography shouldn’t be treated as a replacement for responsive typography. Each has its own set of best practices and proper use-cases and we’ll cover those later on in this article.

In this article, we are going to take a deep dive into fluid typography and check out various approaches that developers have used in the past. We’ll also cover CSS clamp function and how it simplified fluid typography implementation, and we’ll learn how to fine-tune clamp function parameters to control the starting and ending points for fluid behavior. We’ll also cover accessibility concerns, most of which can be addressed today, and one important accessibility issue which we can’t fix as of yet.

More after jump! Continue reading below ↓

## First Attempts At Fluid Typography

As developers, we often use JavaScript to supplement the missing CSS features until they are developed and supported in major browsers. In the early days of the responsive web design, JavaScript libraries like FlowType.JS have been used to achieve fluid typography.

The first real CSS implementation of fluid typography came with the introduction of CSS calc and viewport units (vw and vh).

/* Fixed minimum value below the minimum breakpoint */
.fluid {
font-size: 32px;
}

/* Fluid value from 568px to 768px viewport width */
@media screen and (min-width: 568px) {
.fluid {
font-size: calc(32px + 16 * ((100vw - 568px) / (768 - 568));
}
}

/* Fixed maximum value above the maximum breakpoint */
@media screen and (min-width: 768px) {
.fluid {
font-size: 48px;
}
}

This snippet looks a bit complex and there are a lot of numbers involved in the calculation. So, let’s break this down into segments and have a high-level overview of what is going on. Let’s focus on selectors and media queries to see the cases they cover.

.fluid { /* Min value */ }

@media screen and (min-width: [breakpoint-min]) {
.fluid { /* Preferred value between the minimum and maximum bound */ }

@media screen and (min-width: [breakpoint-max]) { /* Max value */ }

In the mobile-first approach, the first selector fixes the value to a minimum bound. The first media query handles fluid behavior between the two breakpoints. The final breakpoint fixes the value to a maximum bound. Now that we know what each selector and media query does, let’s see how minimum and maximum bound is applied and how the fluid value is being calculated.

.fluid {
font-size: [value-min];
}

@media (min-width: [breakpoint-min]) {
.fluid {
font-size: calc([value-min] + ([value-max] - [value-min]) * ((100vw - [breakpoint-min]) / ([breakpoint-max] - [breakpoint-min])));
}
}

@media (min-width: [breakpoint-max]) {
.fluid {
font-size: [value-max]
}
}

This is a lot of boilerplate code to achieve a very simple task of fixing a value between the minimum and maximum bounds and adding a fluid behavior between two breakpoints.

Despite the amount of the required boilerplate, this approach became so popular for handling fluid sizing in general, that it became clear that a more streamlined approach was needed. This is where the CSS clamp function comes in.

## CSS clamp Function

CSS clamp function takes three values — a minimum bound, preferred value, and a maximum bound, and it clamps the current value between those bounds. The preferred value is used to determine the value between the bound. Preferred value usually includes viewport units, percentages, or other relative units to achieve the fluid effect. This is so robust and flexible function that alongside the fixed values, it can accept even math functions and expressions, and values from the attr function.

clamp([value-min], [value-preferred], [value-max]);

This function can be applied to any attribute which accepts a valid value type like length, frequency, time, angle, percentage, number, and others, so it can be used beyond typography and sizing.

Browser support for clamp function sits above 90% at the time of writing of this article, so it’s already well supported. For unsupported desktop browsers like Internet Explorer, it is enough to supply a fallback value as the unsupported browsers will ignore the entire font-size expression if they cannot parse the clamp function.

font-size: [value-fallback]; /* Fallback value */
font-size: clamp([value-min], [value-preferred], [value-max]);

## Fluid Typography With CSS clamp

Let’s use the CSS clamp function and populate it with the following values:

• Minimum value — equal to minimum font size.
• Maximum value — equal to maximum font size.
• Preferred value — determines how fluid typography scales — starting and ending points of fluid behavior and change speed. This value will depend on the viewport size, so we’ll use the viewport width unit vw.

Let’s take a look at the following example and set the font size to have a value between 32px and 48px. The following font-size has a set minimum of 32px and a maximum of 48px. The current value is determined by the viewport width unit or, more precisely, 4% of current viewport width if that value sits between the minimum and maximum bound.

font-size: clamp(32px, 4vw, 48px);

Let’s take a quick look at which value will be applied for this example depending on the viewport width, so we can get a good grasp of how the CSS clamp function works.

Viewport width (px)Preferred value (px)Applied value (px)
5002032 (clamped to a minimum bound)
9003636 (preferred value between the bounds)
14005648 (clamped to a maximum bound)

We can notice two issues with this clamp function value:

• Pixel values for min and max are not accessible.
Minimum and maximum bounds are expressed with pixel values, so they won’t scale if a user changes their preferred font size.
• Viewport value for preferred value is not accessible.
Same as the previous case. This value depends on the viewport width exclusively and it doesn’t take user preferences into account.
• The preferred value is unclear.
We are using 4vw which might look like a magic number at first. We need to know when the fluid behavior starts and ends so we can sync various fluid font size changes.

We can easily address the first issue by converting px values to rem values for minimum and maximum bounds by dividing the px values by 16 (default browser font size). By doing that, minimum and maximum values will adapt to user browser preferences.

font-size: clamp(2rem, 4vw, 3rem);

We need to take a different approach with the preferred value, as this value needs to respond to the viewport size. However, we can easily mix in the relative rem value by turning it into a math expression.

font-size: clamp(2rem, 4vw + 1rem, 3rem);

Please note that this is not a foolproof solution for all accessibility issues, so it’s still important to test if the fluid typography can be zoomed in enough and if it responds well enough to user accessibility preferences. We’ll cover these issues later on.

However, we still do not know how we got the preferred value from the example (4vw + 1rem) to achieve the required fluid behavior, so let’s take a look at how we can fine-tune the preferred value and fully understand the math behind it.

## Fluid Sizing Function

The preferred value affects how fluid typography function behaves. More precisely, we can change at which viewport width points the minimum value starts to change and at which viewport width point it reaches the maximum value.

For example, we might want the fluid behavior to start at 1200px and end at 800px of the viewport width. Please note that different minimum and maximum bounds require different preferred values (viewport value and relative size) to keep the various fluid typographies in sync.

For example, we usually do not want one fluid behavior to occur between 1200px and 800px of the viewport width and another to occur between 1000px and 750px of the viewport width. This can lead to sizing inconsistencies like in the following example.

To avoid this issue, we need to figure out how the preferred value is calculated and assign the proper viewport and relative values to the clamp function preferred value.

Let’s figure out a function that is used to calculate it.

font-size: clamp([min]rem, [v]vw + [r]rem, [max]rem);


$$y=\frac{v}{100}*x + r$$

• x — current viewport width value (px).
• y — resulting fluid font size for a current viewport width value x (px).
• v — viewport width value that affects fluid value change rate (vw).
• r — relative size equal to browser font size. Default value is 16px.

With this function, we can easily calculate starting and ending points of the fluid behavior. For our example, minimum value of 2rem (32px) is constant until 400px viewport width.

$$32=\frac{4}{100}*x + 16$$

$$16=\frac{1}{25}*x$$

$$x=400$$

We can apply the same function for the maximum value and see that it reaches a maximum value of 3rem (48px) on an 800px viewport width.

The purpose of this example was just to demonstrate how the preferred value affects the fluid typography behavior. Let’s use the same function for a slightly more realistic scenario and solve a more practical real-world example. We’ll create accessible fluid typography based on required font sizes and specific points where we want the fluid behavior to occur.

### Calculating preferred value parameters based on specific starting and ending points

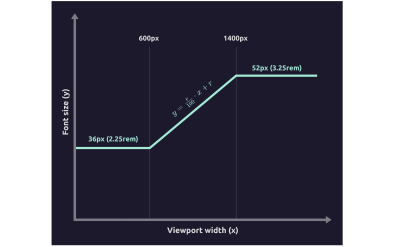

Let’s take a look at a practical example that comes up often in real-world scenarios. The designers have provided us the font sizes and breakpoints we, as developers, need to implement the fluid typography with the following parameters:

• Minimum font size is 36px (y1)
• Maximum font size is 52px (y2)
• Minimum value should end at 600px viewport width (x1)
• Maximum value should start at 1400px viewport width (x2)

Let’s take these values and add them to the fluid sizing function we’ve discussed previously.

$$y=\frac{v}{100} \cdot x + r$$

We end up with two equations with two parameters that we need to calculate — viewport width value v and relative size r .

$$(1)\;\;\; y_1=\frac{v}{100} \cdot x_1 + r$$

$$(2) \;\;\; y_2 =\frac{v}{100} \cdot x_2 + r$$

We can take the first equation and turn it into the following expression that we can use.

$$(1) \;\;\; r=y_1 - \frac{v}{100} \cdot x_1$$

We can replace r in the second equation with this expression and get the function to calculate v.

$$v=\frac{100 \cdot (y_2-y_1)}{x_2 - x_1}$$

$$v=\frac{100 \cdot (52-36)}{1400 - 600}$$

$$v=2$$

We get the viewport width value 2vw. In a similar way, we can isolate r and calculate it using the available parameters.

$$r=\frac{x_1y_2 - x_2y_1}{x_1 - x_2}$$

$$r=\frac{600 \cdot 52 - 1400 \cdot 36}{600 - 1400}$$r=24$$Note: This value is in pixels and relative value needs to be expressed in rem so we divide the pixel value with 16 and end up with 1.5rem. We also need to convert the minimum bound of 36px and maximum bound of 52px to rem and add all values to the CSS clamp function. font-size: clamp(2.25rem, 2vw + 1.5rem, 3.25rem); We can plot this function to confirm that the calculated values are correct. To summarize, we can use the following two functions to calculate preferred value parameters v (expressed in vw ) and r (expressed in rem) from font sizes and viewport width points.$$v=\frac{100 \cdot (y_2-y_1)}{x_2 - x_1}r=\frac{x_1y_2 - x_2y_1}{x_1 - x_2}

Now that we fully understand how the clamp function works and how the preferred value is being calculated, we can easily create consistent and accessible fluid typography in our projects and avoid the aforementioned pitfalls.

## Using negative viewport value for fluid sizing

We can also make the size scale up as the viewport size decreases by using a negative value for the viewport value. The negative viewport value will reverse the default fluid behavior. We also need to adjust the relative size so the fluid behavior starts and ends at certain points by solving the two aforementioned equations from the previous example.

font-size: clamp(3rem, -4vw + 6rem, 4.5rem);

I haven’t used this reversed configuration in my projects, but you might find it interesting if you ever encounter this requirement in your project or the design.

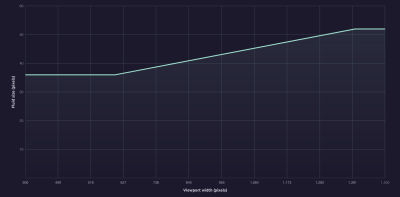

### Fluid typography visualization tool

While I was working on a project, I had to create multiple different fluid typography configurations. I was testing the configurations in the browser and I had an idea to create a tool that would help developers visualize and fine-tune fluid typography behavior. I was inspired by one of the demos from Josh W. Comeau’s “CSS for JS developers” course and I’ve created Modern Fluid Typography Tool.

Developers can use this tool to create and fine-tune fluid typography code snippets and visualize fluid behavior to keep multiple instances in sync. The tool can also generate a link to the config, so developers can include the link in code comments or documentation so others can easily check the fluid sizing behavior.
